Special Cargo Containers & Specifications

  1. Home
  2. Special Cargo
  3. CONTAINERS & SPECIFICATIONS

CONTAINERS & SPECIFICATIONS

Flat Rack Container*

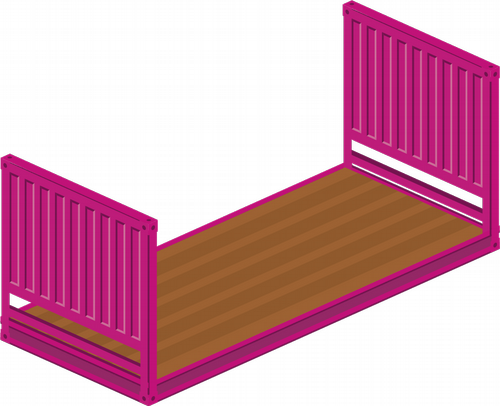

Flat rack container

Characterized by a reinforced base floor and two end walls affixed to the front and rear, flat rack containers are ideal for cargo types such as heavy machinery, vehicles, and industrial components. Whether your shipment is Out-of-Gauge (OOG) or requires heavy-lift support, our flat rack units provide a seamless platform for cargo shipping that exceeds standard size and dimensions. This specialized shipping service ensures that even the most complex or heavy industrial loads are secured with precision for their ocean freight journey.

  • 20ft Flat Rack Container

  • Specifications for 8’6”/ 34,000kg

    Inside Measurement Length (cm) 556 (between corner posts)
      Width (cm) 219 (between side rails)
      Height (cm) 221
    Load Capacity (m3) 28.4
    Container Weight (kg) 3,050
    Max. Load Weight (kg) 30,950
  • 40ft Flat Rack Container

  • Specifications for 8’6”/ 45,000kg

    Inside Measurement Length (cm) 1,165 (between corner posts)
      Width (cm) 220 (between side rails)
      Height (cm) 195
    Load Capacity (m3) 53.2
    Container Weight (kg) 6,200
    Max. Load Weight (kg) 38,800
  • 40/HC Flat Rack Container

  • Specifications for 9’6”/ 58,600kg

    Inside Measurement Length (cm) 1,165 (between corner posts)
      Width (cm) 237 (between side rails)
      Height (cm) 226
    Load Capacity (m3) 64.3
    Container Weight (kg) 6,100
    Max. Load Weight (kg) 52,500

Open Top Container*

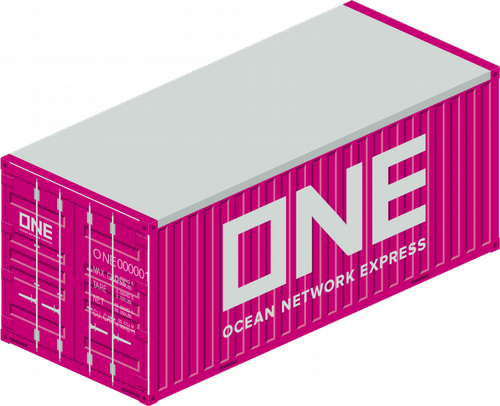

Open top container

Featuring a removable canvas or tarpaulins instead of a solid roof, Open Top containers are designed for special cargo types that require overhead loading or extra vertical clearance. This versatile shipping service maximizes container capacity for Out-of-Gauge (OOG) height requirements while maintaining the protection of reinforced side walls. Whether utilizing a 20ft container or a 40ft container—including the HC container for maximum volume—our equipment ensures your cargo shipping remains secured throughout its ocean freight journey.

  • 20ft Open Top Container

  • Specifications for 8’6”/ 30,480kg

    Inside Measurement Length (cm) 589
      Width (cm) 234
      Height (cm) 234
    Door Opening Width (cm) 233
      Height (cm) 224
    Roof Header Width (cm) 186
    Roof Opening Length (cm) 576
      Width (cm) 222
    Load Capacity (m3) 32.4
    Container Weight (kg) 2,380
    Max. Load Weight (kg) 28,100
  • 40ft Open Top Container

  • Specifications for 8’6”/ 30,480kg

    Inside Measurement Length (cm) 1,202
      Width (cm) 234
      Height (cm) 234
    Door Opening Width (cm) 233
      Height (cm) 224
    Roof Header Width (cm) 185
    Roof Opening Length (cm) 1,189
      Width (cm) 218
    Load Capacity (m3) 66.2
    Container Weight (kg) 3,880
    Max. Load Weight (kg) 26,600
  • 40/HC Open Top Container

  • Specifications for 9’6”/ 32,500kg

    Inside Measurement Length (cm) 1,203
      Width (cm) 235
      Height (cm) 265
    Door Opening Width (cm) 234
      Height (cm) 258
    Roof Header Width (cm) 194
    Roof Opening Length (cm) 1,180
      Width (cm) 219
    Load Capacity (m3) 75.1
    Container Weight (kg) 4,060
    Max. Load Weight (kg) 28,440

* Indicated specifications for reference only. Actual unit may differs.
